JAM6

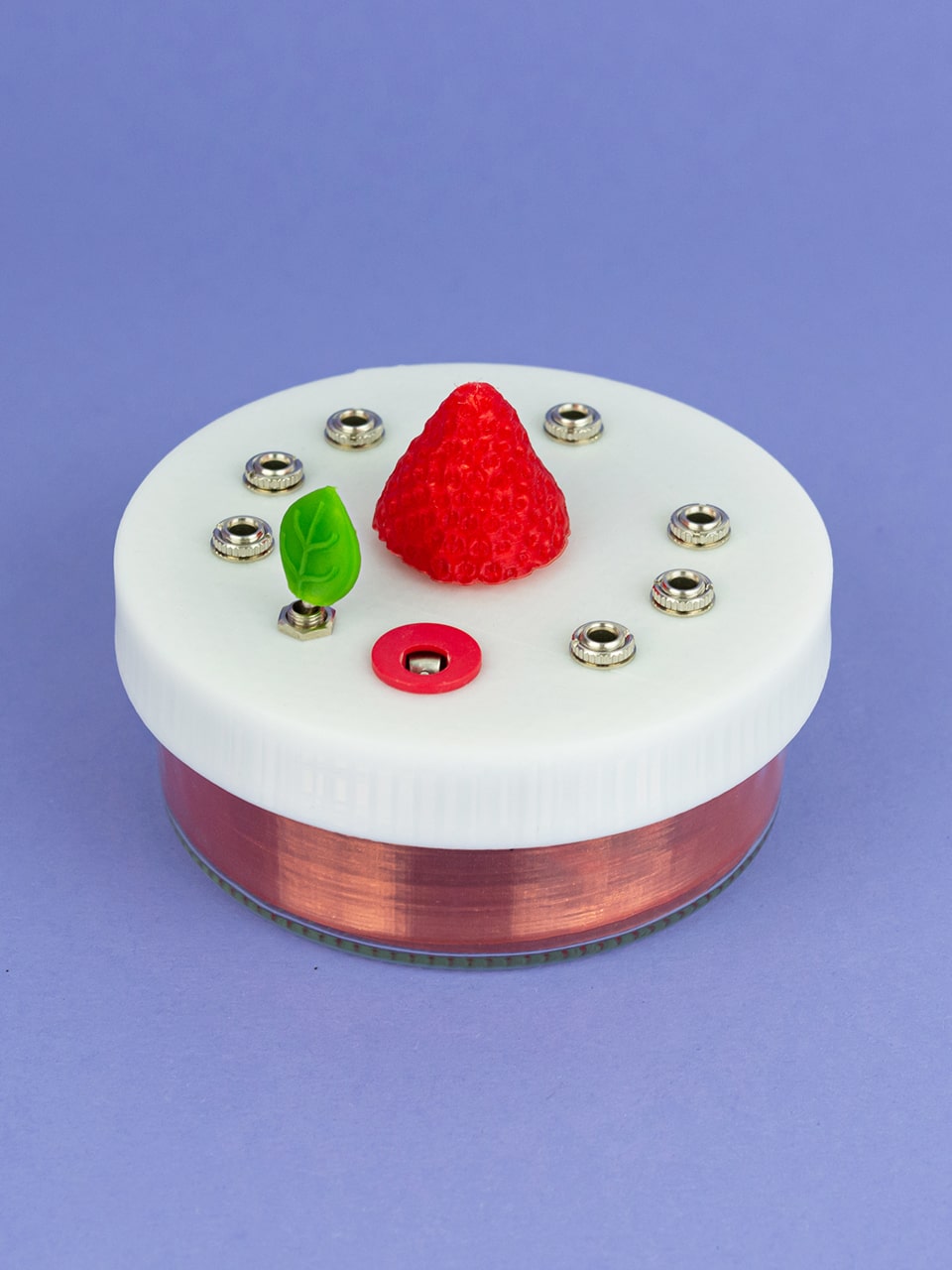

Handmade portable stereo mixer

Jam6 is the best mate of pocket instruments and musicians “on the go”. You can connect up to 6 stereo devices with high and low impedance. Connect more JaM6 in series to increase the amount of inputs. You can use it on your own or share it with your friends and make a tasteful juicy jam!

Jam6 is powered by a 9v battery and it has 6 unbalanced stereo channels with mini jack inputs and output. It is armed with a TL072/NE5532 OpAmp that gives a Lo-fi taste to your mix.

PREASSEMBLED – what is included:

  • Jam6 Portable Mixer
  • 100% Cotton bag

FULL KIT – what is included:

  • Components – download BOM
  • 100% Cotton bag

Battery is not included.

Before buying a DIY kit, please note that it is your responsibility to build this project with the instructions provided in our assembly guide. We do not provide support, unless there are some defective or missing parts

Features

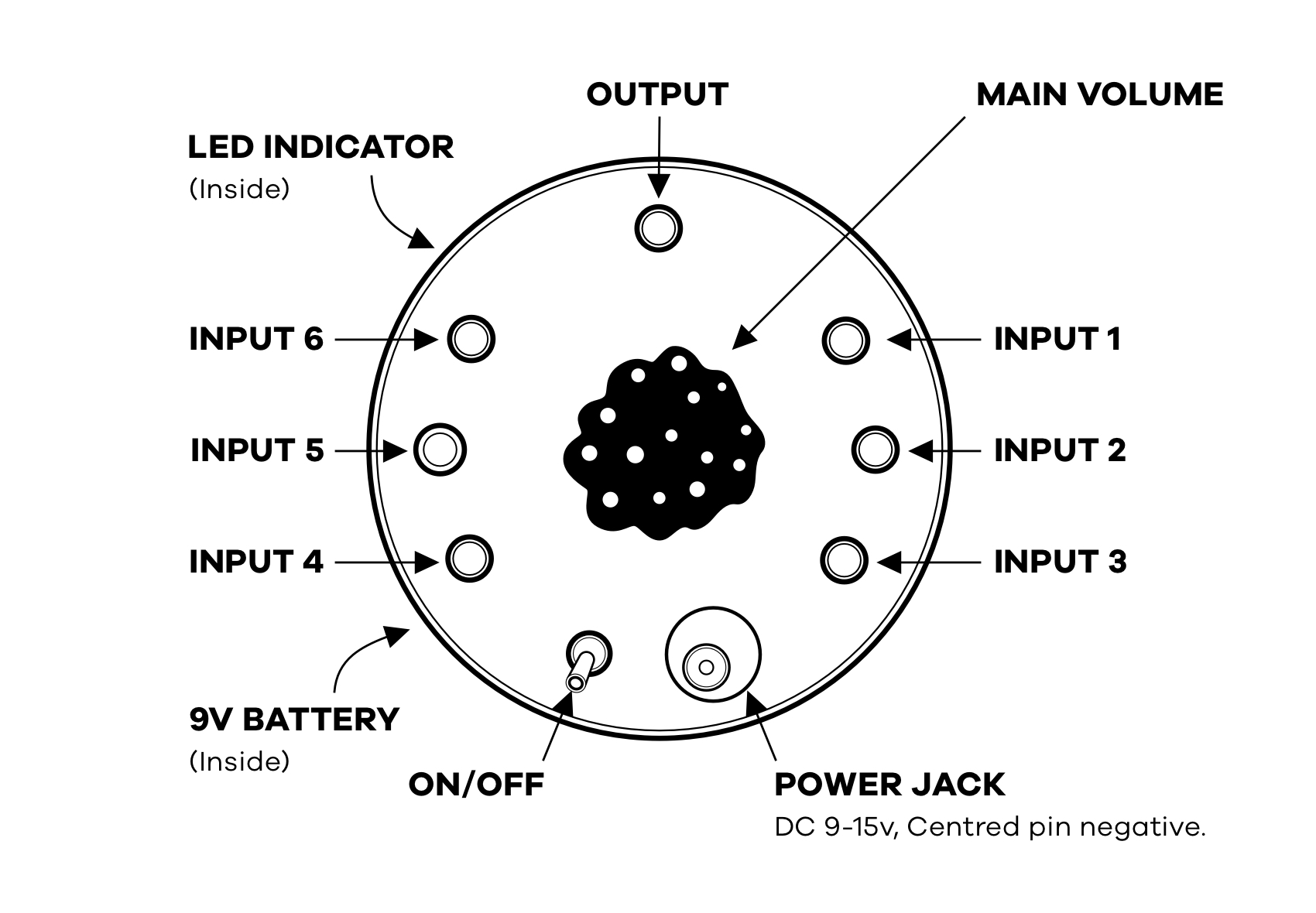

Jam6 features: DC 9-15v centred pin negative power supply, 60mA consumption, 22Kohm inputs impedance, 9v PP3 battery (not included), 6 x 3,5mm Jack stereo input (Unbalanced), 1 x 3,5mm Jack stereo output (Unbalanced), On/Off output volume control, Full THT circuit, TL072 OpAmp.

Jam6 is available as a full kit to assembly or pre-assembled.

RESOURCES

ASSEMBLY GUIDE

Get all the instructions to assembly your Jam6

How to place the battery

Previous
Next



Take out the cover.

Connect a 9v standard battery to the battery clip and place it in the battery holder.

Put the cover back on the glass jar, turn the power on and start jamming!

Weight 0.3 kg
Dimensions 10 × 10 × 6 cm
Material

Glass, 3D Printed PLA

Inputs Impedance

22Kohm

Inputs

6x 3,5mm Stereo Jack (Unbalanced)

Output

1x 3,5mm Stereo Jack (Unbalanced)

Battery type

PP3 9v Battery (Not included)

Power supply

9-15v 2,5mm DC jack Centred pin negative – Pedal type (Not Included)

Accessories

100% Cotton bag

Jam6 Type

Pre-assembled, Kit
